What is the purpose of a Type 1 to Type 2 adapter?
A Type 1 (male) to Type 2 (female) adapter is a small yet highly practical device that allows electric vehicles (EVs) and plug-in hybrid vehicles (PHEVs) with Type 1 ports to charge at stations equipped with Type 2 plugs. This is particularly useful in Europe, where the Type 2 standard is more popular than Type 1, which is commonly found in vehicles manufactured in the U.S. and Japan.

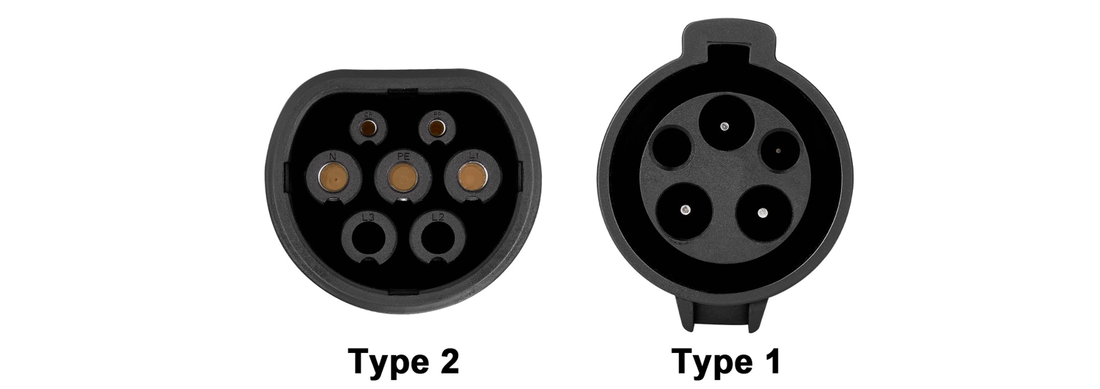

What is the difference between Type 1 and Type 2?
Type 1:
- Region: Type 1 is primarily used in North America and Japan.
- Design: It is a single-phase plug with a one-sided latch, mainly designed for AC charging up to 7.4 kW (single-phase).
- Popularity: Common in older european EV and PHEV models like the Nissan Leaf, Mitsubishi Outlander PHEV, Kia Soul EV and all imported cars from US.
- Usage: Primarily used for home chargers and slow-charging stations.
Type 2:
- Region: Type 2 is the dominant standard in Europe, defined by the EU as the official standard for public charging stations.
- Design: It has a more universal, symmetrical pin layout, supporting both AC charging up to 22 kW (three-phase).
- Popularity: Found in most modern EV models like Tesla Model 3, Volkswagen ID.4, BMW i3, and Audi e-tron.
- Usage: Supports both home and public charging, including fast-charging stations.
Key Differences Between Type 1 and Type 2
| Feature | Type 1 | Type 2 |
|---|---|---|
| Region | North America, Japan | Europe |
| Current Type | AC (single-phase, up to 7.4 kW) | AC (1-3 phase, up to 22 kW) |
| Plug Design | One-sided latch | Symmetrical, more universal |
| Usage | Home charging | Home and public charging |
| Examples | Nissan Leaf, Mitsubishi Outlander | Tesla Model 3, VW ID.4, Audi e-tron |
Why Are These Differences Important?
The differences in plug designs and regional standards can create barriers for EV owners traveling between countries or using different types of charging stations. With a Type 1 to Type 2 adapter, drivers can easily charge their vehicles with Type 1 ports at stations equipped with Type 2 sockets – a necessity in Europe.
How Does a Type 2 to Type 1 EV Charging Adapter Work?
The diagram above illustrates the functionality of an EV charging adapter that converts a Type 2 connector to a Type 1 connector.
🔹 How It Works:
Difference in Phases
🔹The Type 2 standard supports three-phase charging (L1, L2, L3).
🔹The Type 1 standard supports single-phase charging (only L1).
🔹Therefore, the L2 and L3 wires are not connected and are not used in the charging process.
Basic Connections
🔹L1 (live), N (neutral), and PE (earth/ground) are directly connected between Type 2 and Type 1.
🔹PP (Proximity Pilot) and CP (Control Pilot) enable communication between the charging station and the vehicle.
🔹A 150Ω resistor is included in the signal circuit to facilitate proper charging communication.
Power Limitation
🔹Since L2 and L3 are unused, the charging power is limited to single-phase operation.
In practice, this means the maximum charging power will be limited to Type 1 specifications (typically up to 7.4 kW at 32A, 230V).
✅ Summary
The Type 2 to Type 1 adapter allows the use of Type 2 charging stations, but delivers power based on the single-phase limitations of Type 1. This enables EV owners with a Type 1 charging port to access the widely available Type 2 charging infrastructure.
How to Use the Adapter?
Using the adapter is very simple:
- Connect the adapter to the vehicle's Type 1 port. Ensure the Type 1 (male) plug is securely inserted into the vehicle's socket.
-
Connect the adapter to the Type 2 charging cable. The Type 2 (female) end of the adapter attaches to the charging station cable.
-
Start charging. Verify that charging is proceeding correctly by checking the indicators on both the charging station and the vehicle.
Benefits of Using the Adapter
- Flexibility: Access a broader network of Type 2 charging stations.
- Ease of Use: The simple design allows for quick and intuitive operation.
- Time and Cost Savings: Avoid the need to install additional chargers at home.
Precautions When Using the Adapter
While adapters are safe and easy to use, there are a few important rules to follow:
- Do not use a damaged adapter or cable. Any damage could cause a short circuit or other hazards.
- Avoid overloading the adapter. Check the adapter’s current limits in its technical specifications before use.
- Do not use the adapter in extreme weather conditions. Rain, snow, or excessive moisture can affect its safety.
Conclusion
A Type 1 to Type 2 adapter is an indispensable tool for EV and PHEV owners with Type 1 ports. It enables access to the vast network of Type 2 charging stations, enhancing the convenience and flexibility of charging. Always use the adapter as intended and maintain it in good condition to ensure safe operation.
