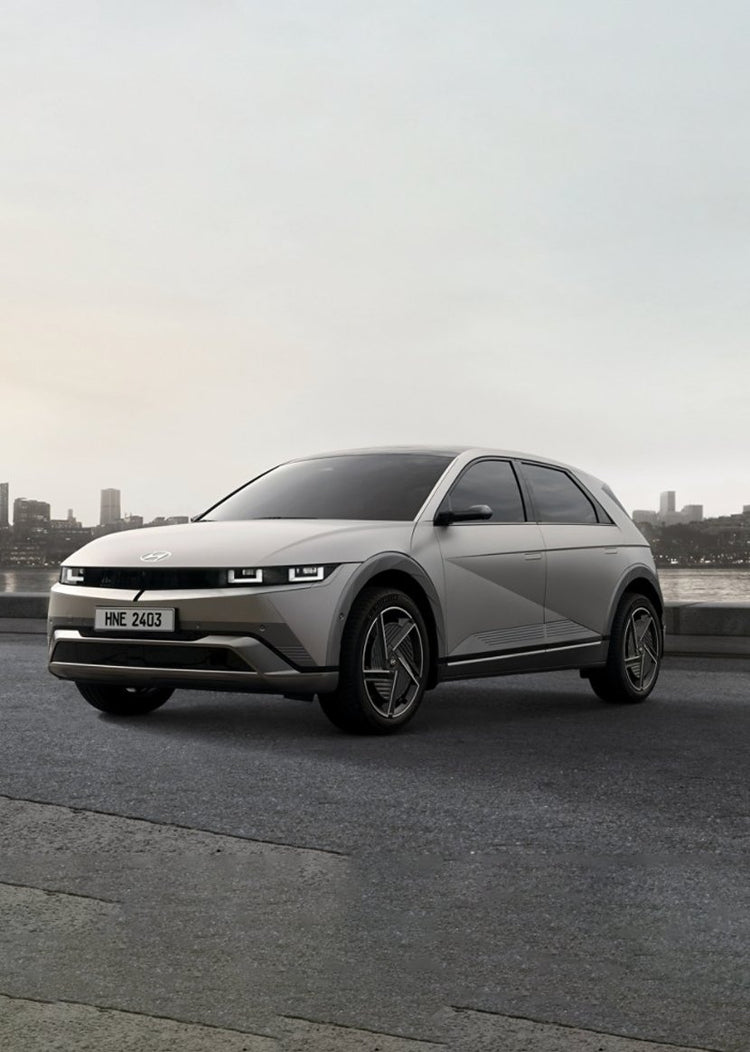

🔋 Hyundai IONIQ 5 – Battery Capacity, Charging Times, and EV Charging Specs (58 kWh & 77.4 kWh)

The Hyundai IONIQ 5 is one of the most advanced electric vehicles on the market, offering ultra-fast charging thanks to its 800V E-GMP platform. Depending on the configuration, it’s available with two battery sizes and supports both AC home charging and high-power DC fast charging.

🔋 Battery Options and WLTP Range

Standard Range (58 kWh usable): up to 384 km WLTP

Long Range (77.4 kWh usable): up to 507 km WLTP (RWD version)

⚡ AC Charging (Home or Public Chargers)

Maximum AC charging power: 11 kW (3-phase)

Full AC charging time (0–100%):
▪️ 58 kWh version: around 6 hours
▪️ 77.4 kWh version: around 7–8 hours

AC charging uses a Type 2 connector and requires a 3-phase wallbox (16A) to reach maximum charging power at home or at public AC stations.

⚡ DC Fast Charging (Ultra-Fast 800V Architecture)

Maximum DC charging power: up to 350 kW

DC charging time (10–80%) at 350 kW:
▪️ ~18 minutes (both battery versions)

Thanks to its 800V system, the IONIQ 5 is among the fastest-charging EVs available. It uses a CCS2 connector for DC charging and is compatible with all major fast-charging networks.

✅ Hyundai IONIQ 5 Charging Summary

Whether you choose the 58 kWh or 77.4 kWh battery, the Hyundai IONIQ 5 supports AC charging up to 11 kW and DC fast charging up to 350 kW. This means fast, convenient charging at home and ultra-quick top-ups at highway stations – one of the key advantages of its E-GMP platform.

👉 All compatible chargers for the Hyundai IONIQ 5 (58 kWh and 77.4 kWh) are listed below.
